Its a simple guide that provides a nice basis to incorporate into your own enclosure. A more advanced / detailed guide is coming soon that will include a few more exciting features!
002 - VECT 'A' SKETCH DIY OSCILLOGRAPHIC GENERATOR
In this guide I show you how to utilise two cheap function generator kits and an amplifier module from eBay to create an oscillographics generator capable of drawing complex patterns on a modified CRT monitor.
In the guide i show you how to build the generator section and I also touch on the process of modifying CRTs for use as an X/Y display (DO THIS AT YOUR OWN RISK)
003 - CIRCUIT BENDING AN EDIROL V4
In this guide i show you how to circuit bend an Edirol V4 to create interesting digital video RAM glitches on both busses of the mixer.
This process is not for the faint of heart, It involves precise, refined soldering techniques to achieve a reliable end result that doesn't just fry your unit!
004 - GBS 8100 VIDEO SYNTH / GLITCH PROCESSOR [VIDEO]
In this guide I show you how to circuit bent the GBS-8100 (A VGA to composite converter you can get for £20 on amazon) How to incorporate it into a feedback loop with a composite to VGA converter and provide some really great effects recipes with clear pinouts to take any of the guess work out of this project for you!

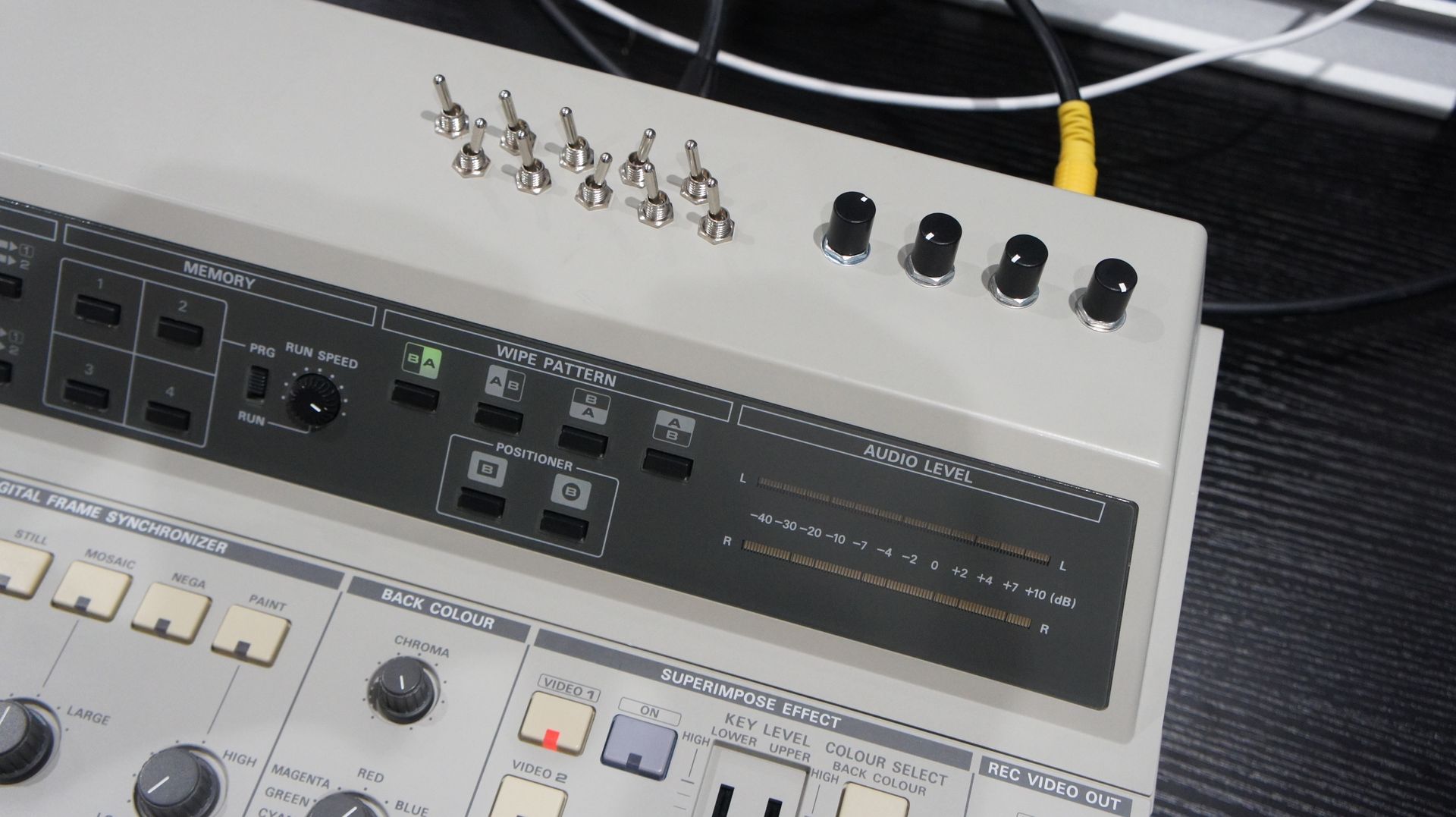

005 - HOW TO CIRCUIT BEND A PANASONIC WJ-MX12
In this guide I show you how to circuit bend the classic MX12 video
mixer. Its a tough nut to crack as the memory is hidden deep inside this thing! I take you through detailed disassembly and reassembly steps so you to can have a turbo charged MX12!

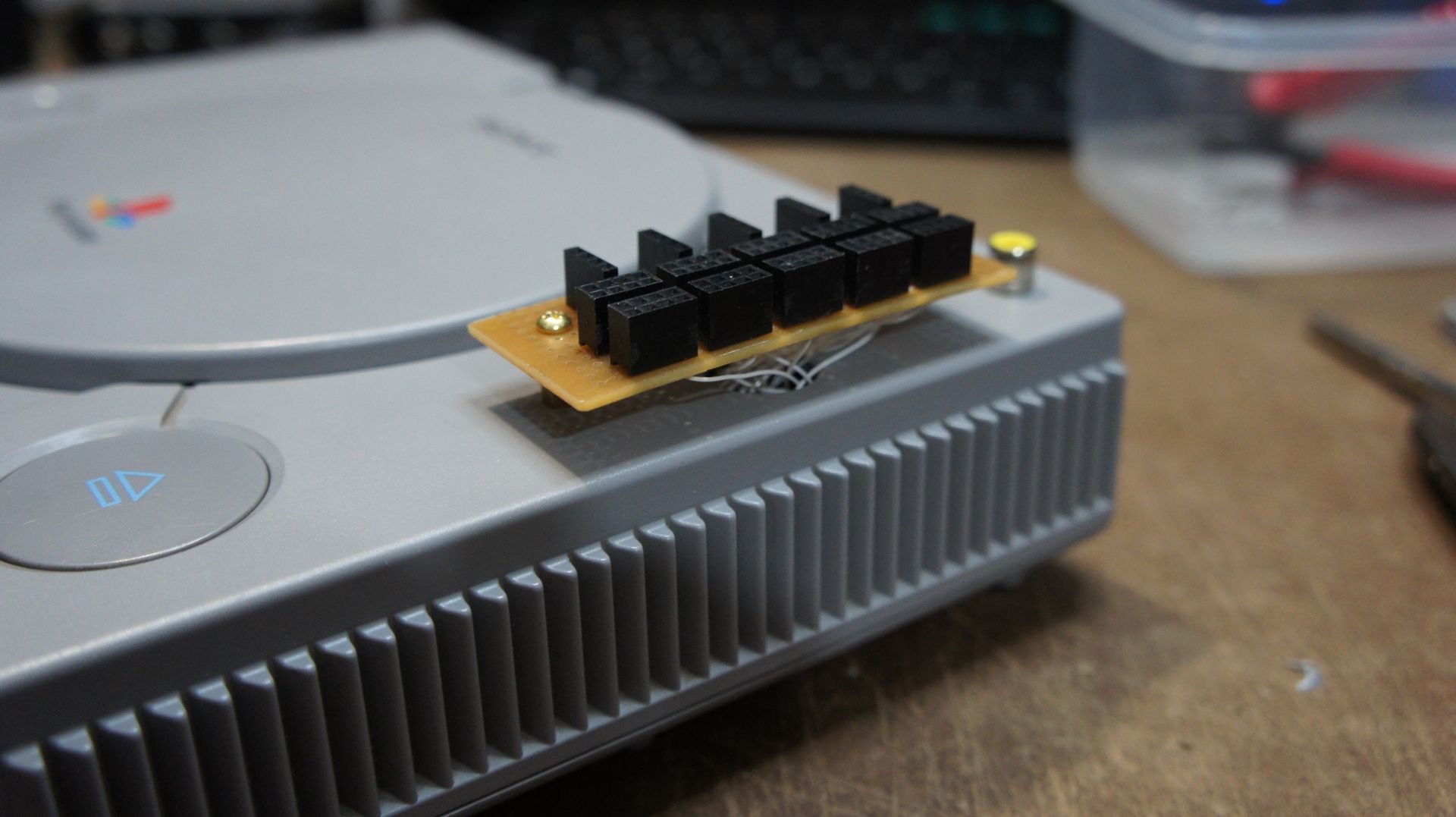

006 - HOW TO CIRCUIT BEND A PLAYSTATION [SCPH-750X]
In this guide I who you how to circuit bend the classic Sony PlayStation. I have created detailed pin maps for where you want to solder to for the magic!
The specific model chosen is the SCPH-7500x with the PU22 motherboard as it is one of the easiest to solder the circuit bends onto.
